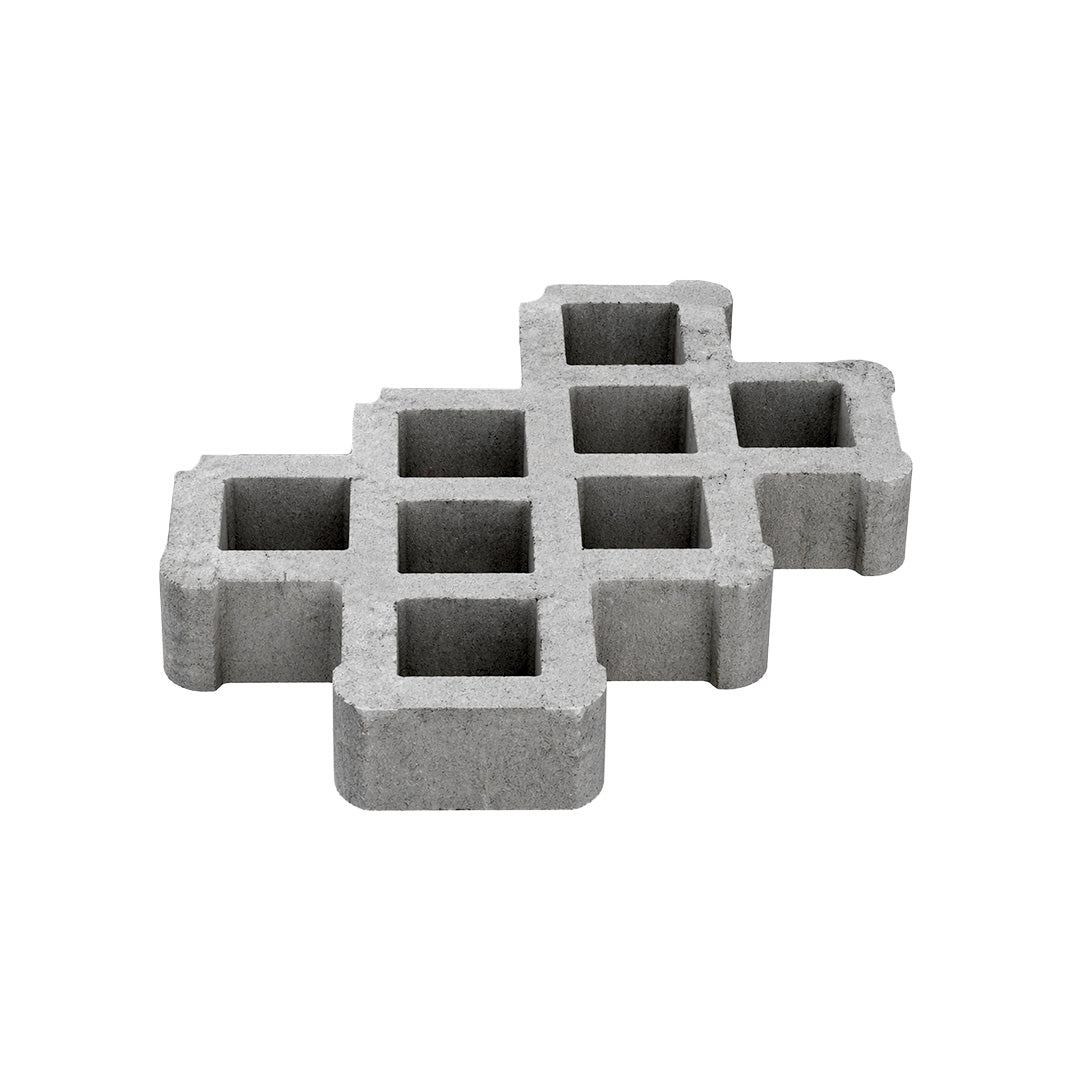

Heavy Duty Ground Grid (HDGG)
Heavy Duty Ground Grid (HDGG)
SOLD PER UNIT
Regular price
$13.91
Sale price
$13.91
Regular price
Heavy Duty Ground Grid – Permeable Paving System
The Heavy Duty Ground Grid is a high-performance, permeable paving solution engineered to provide robust ground reinforcement in demanding environments. Designed for both commercial and residential use, this system delivers exceptional load-bearing capacity while supporting environmentally friendly stormwater management through its permeable design.
When you need a rugged, reliable, and environmentally responsible solution for ground reinforcement, the Heavy Duty Ground Grid delivers — offering strength you can trust and performance you can depend on, project after project.
Couldn't load pickup availability
Product Specifications
Product Specifications
- Material 100% recycled polyolefins

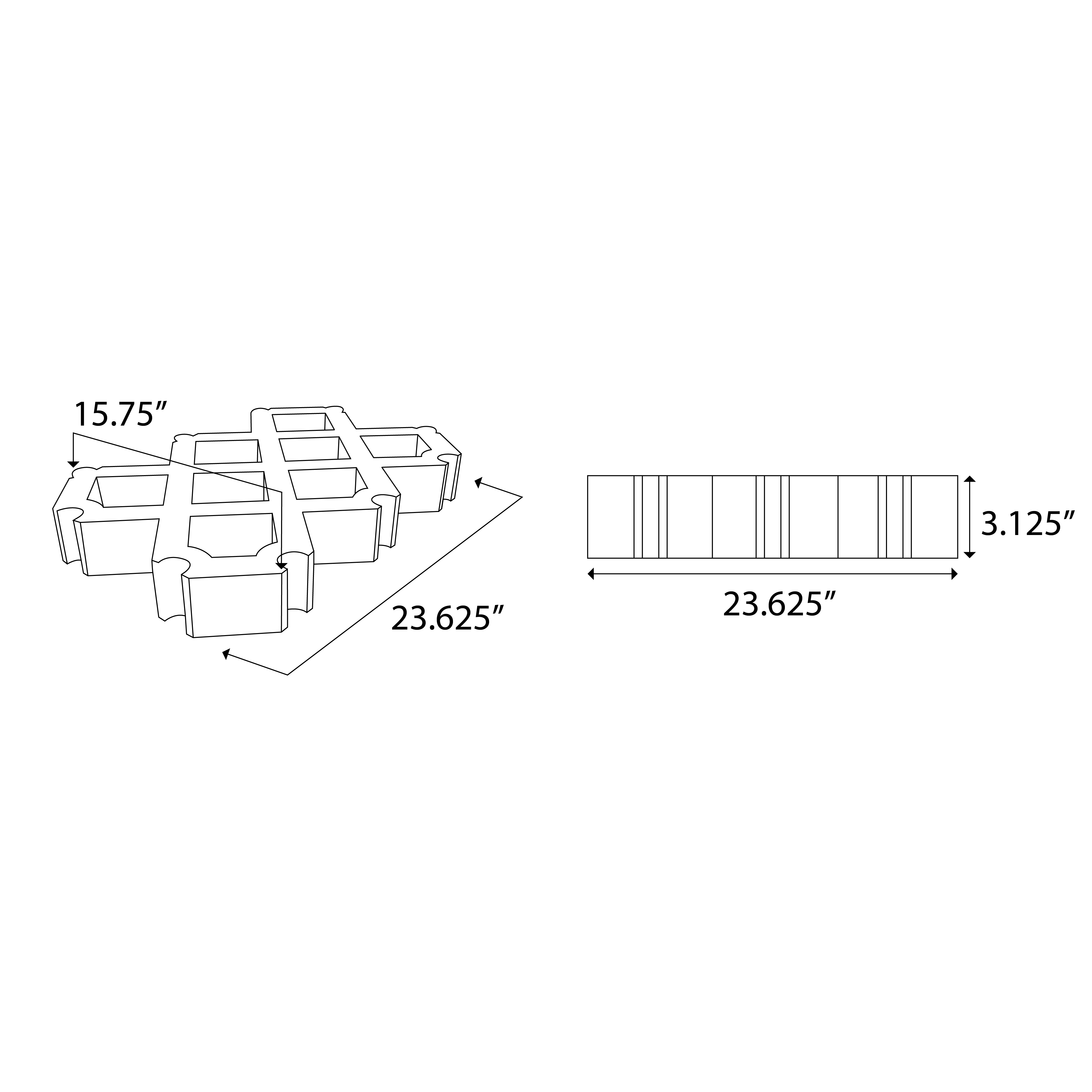

- Nominal size 235⁄8” x 153⁄4” x 31⁄8”
- Unit weight 19.8 lbs (79.2 lbs per 10.8 ft2, 4 grids)
- Coverage 1 grid = 2.58 ft2
- Compressive 388,800 psf (2,700 psi)strength
- Connection type Tongue and groove
- Cell wall width 15⁄8”
- Color Gray
- Parking markers Standard thermoplastic road paint
- Infiltration rate 298”/hr for gravel
- Pallet size 45” x 46” x 91” (27 layers of 5)
- Pallet details 135 grids, 2,673 lbs (16 pallets/load)
- Canada: Charter of Rights and Freedoms & The Canadian Human Rights Act
Ideal Application
Ideal Application
- Driveways
- RV and trailer pads
- Construction site access roads

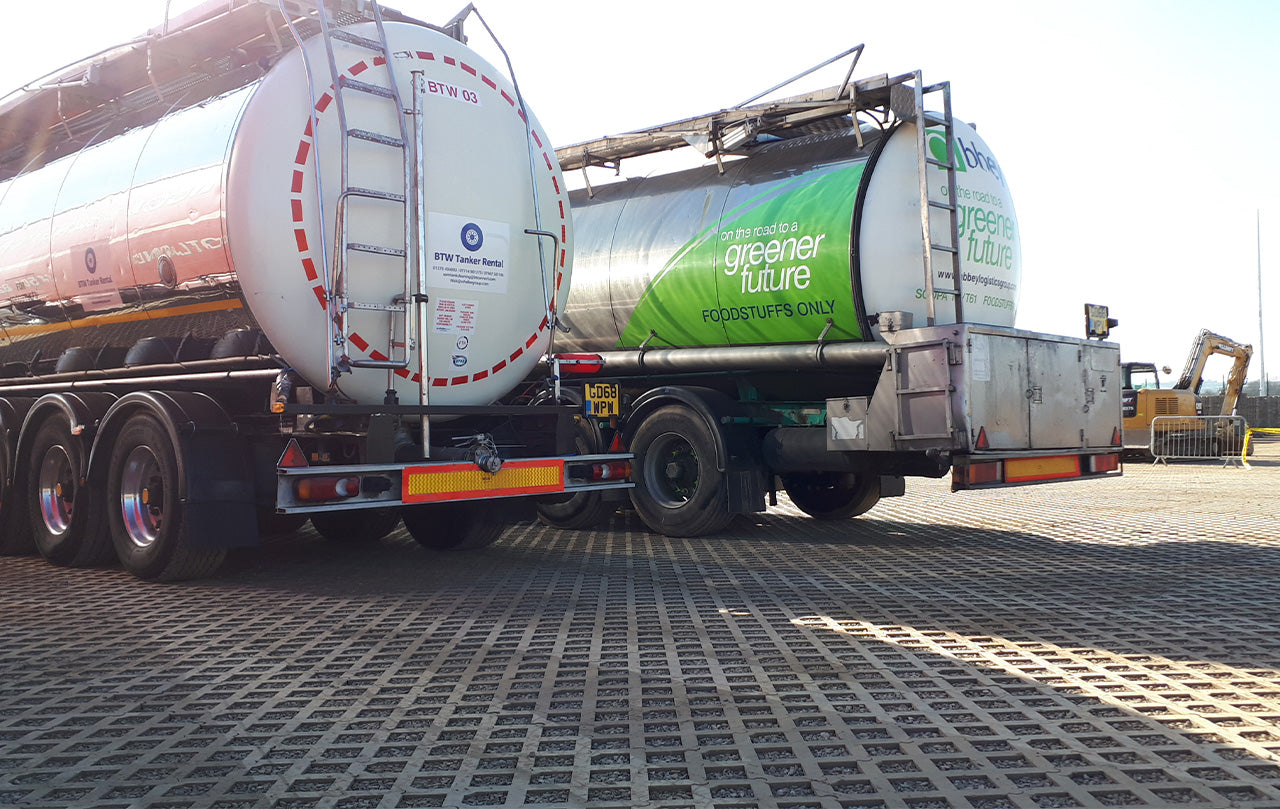

- Heavy-duty parking areas
- Erosion control on slopes and embankments
- Base stabilization for retaining walls
Key Features
Key Features

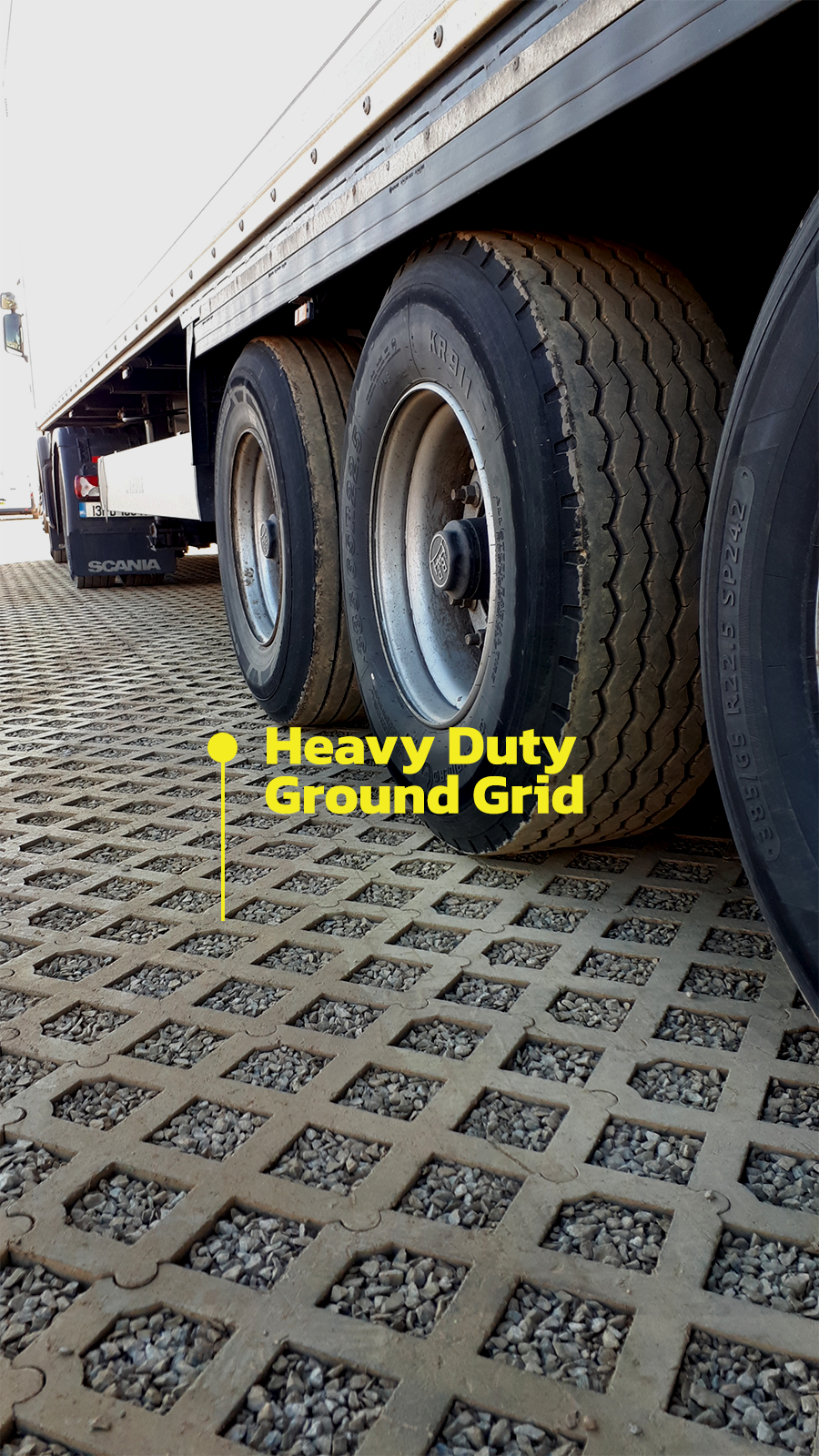

- Heavy-Duty Strength: Built to support vehicular traffic, including cars, trucks, and construction equipment — ideal for driveways, access roads, and parking areas
- Permeable Design: Promotes natural water infiltration, reducing runoff and aiding in stormwater management
- Eco-Friendly: Made from recycled materials and contributes to LEED credits for sustainable construction

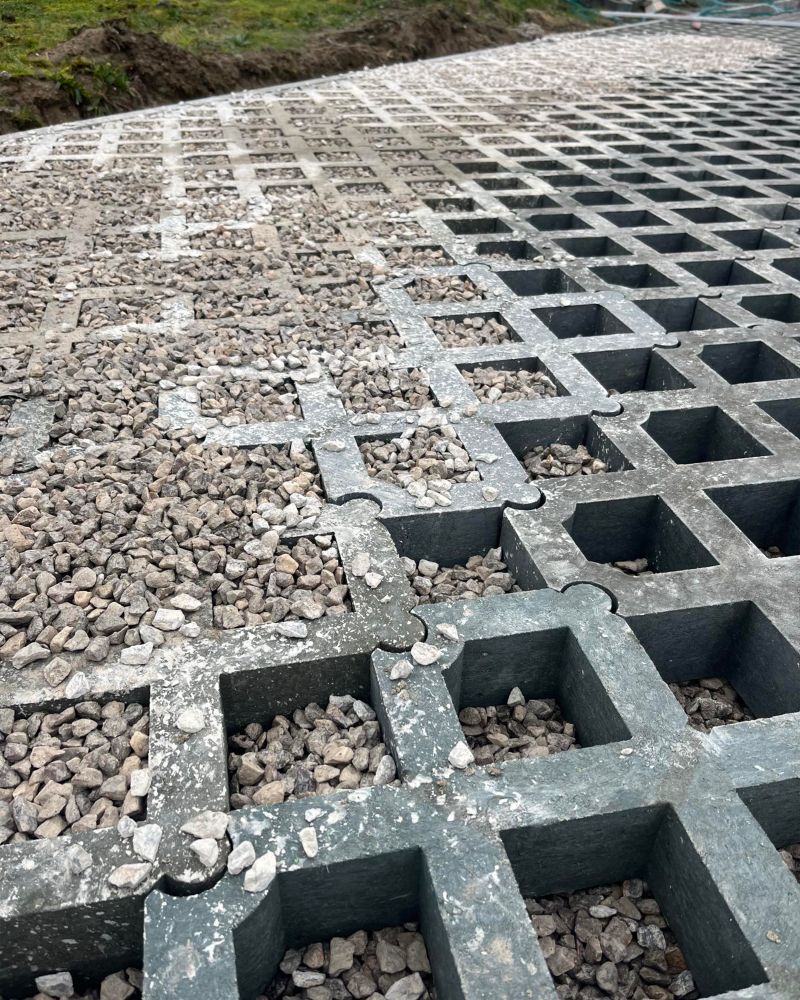

- Interlocking Panels: Simple to install and connect, creating a seamless and stable surface
- Low Maintenance: Weatherproof, UV-resistant, and resistant to cracking, rotting, or degradation over time

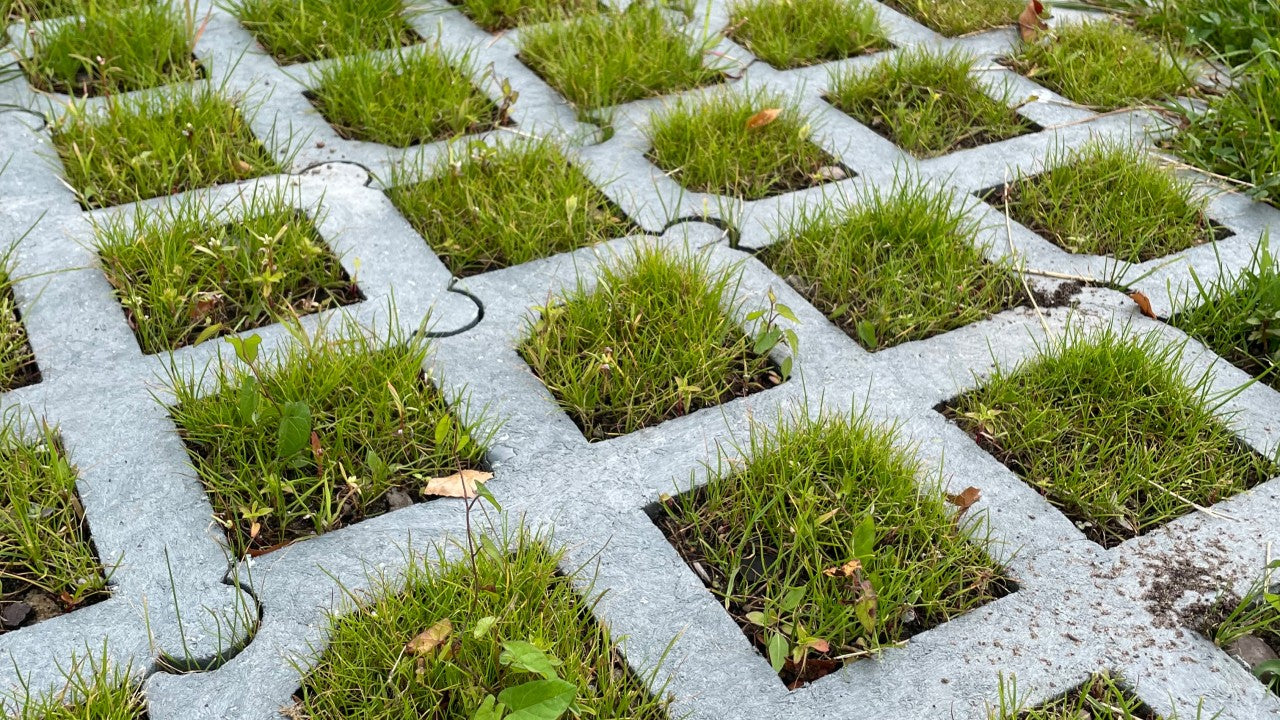

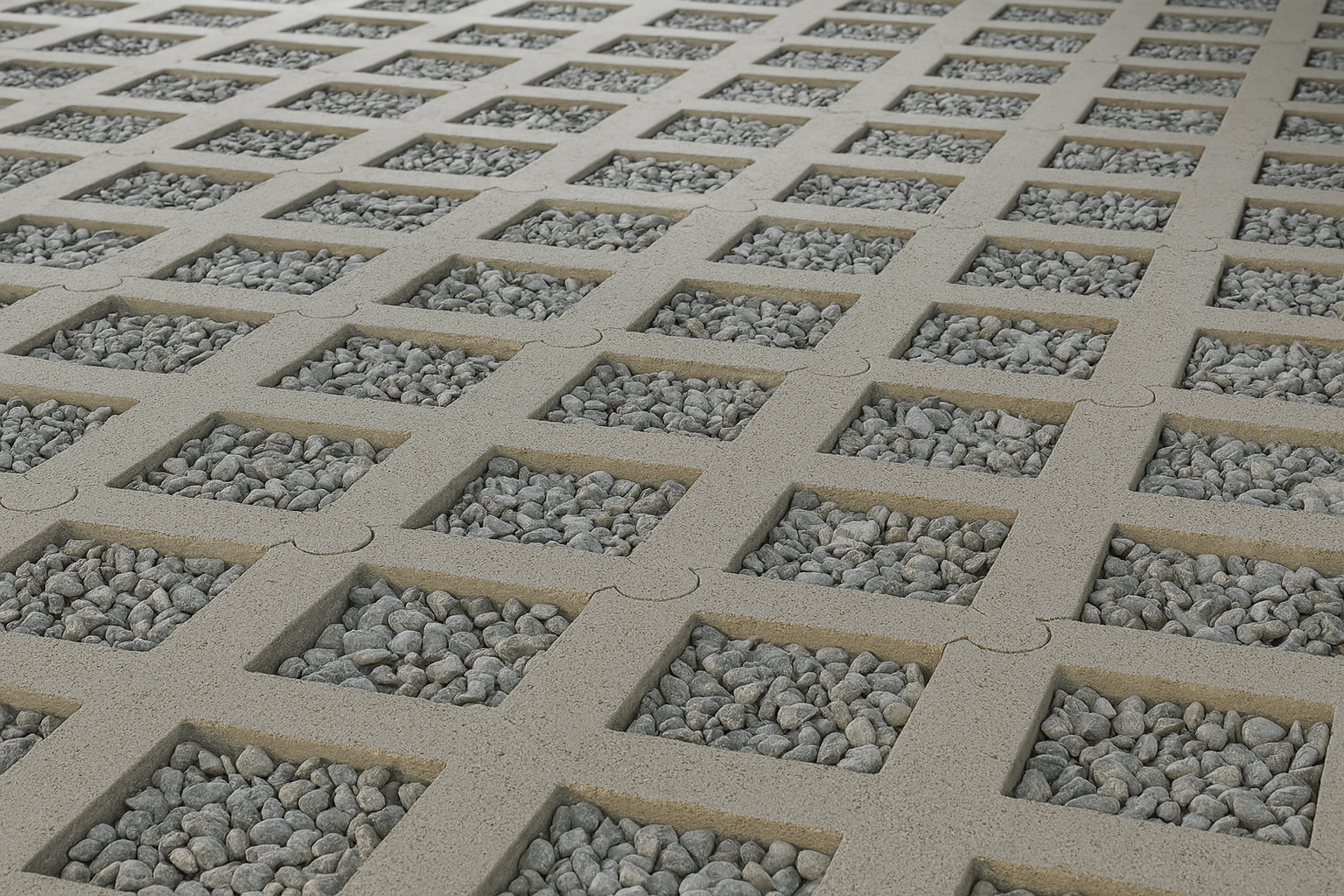

- Versatile Use: Can be filled with grass, gravel, or sand, adapting to the needs of your project
